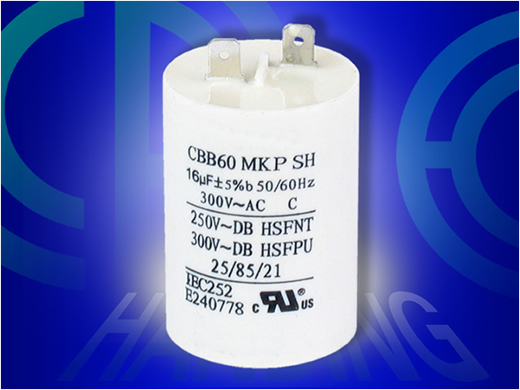

  CBB60-A8 Capacitor

Features and use: It is small in bulk, has long life-span and good self-healing Characteristic. It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.
decoupling capacitor, farad capacitor, oil filled capacitor
Technical features: climate types:40/70/21
capacity volume variance :±5%, ±10%
Testing voltage: between leading-out 1.75UR, 10S no breakdown
between leading-out end and shell: 2200VAC, 10S no breakdown
Insulation resistance: between leading-out ends:=3000MO.µF
between leading-out end and shell: =1000MO
Loss tangent: tgd=0.002(50HZ)
Specifications: can be supplied according to the customers' special need.
decoupling capacitor, farad capacitor, oil filled capacitor

Specification requirement
Standard capacitanceµF 450VAC 250VAC
D H D H
2~3 25 57
4~6 30 70
7~10 35 55
7~10 35 60
8~12 35 68
8~12 35 73 30 70
14~20 40 70 35 55
20~25 40 95 35 60
10~15 42 60 35 55
10~20 42 70 35 68
20~25 42 80 35 68
20~30 42 90 40 70
25~35 45 92 42 70
35~45 50 92 42 80
45~50 50 100 45 92
50~60 50 116 45 92
60~70 60 100 50 100
70~100 60 120 50 116
100~120     60 100

Specification requirement
Standard capacitanceµF 450VAC 250VAC
D H D H
3~6 30 68
6~12 35 74 30 60
14~20 42 75 35 74
20~30 42 95 35 74
25~36 45 95 42 75
35~40 46 135 42 75
35~45 50 106 40 95
45~50 50 120 42 95
50~60 50 120 45 95
60~70     50 106
70~120     50 106
