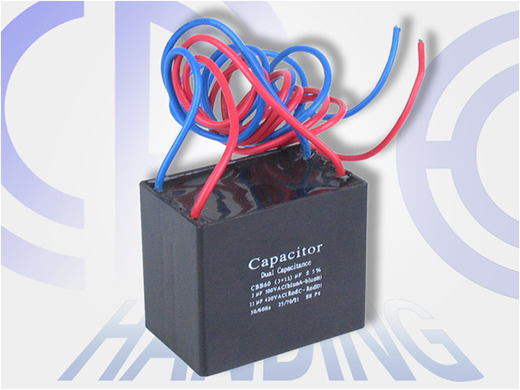

Features and use: All of its performance indexes reach the requirements of IEC252 criterion. With its good self-healing characteristic, long life-span and high proportionality, it is widely used as the start-up and running capacitor that is special for electric appliances such as electric fanners, ventilators and exhaust fanners. motor starting capacitor, motor starting capacitors
Technical features: climate types: 40/70/21
capacity volume variance: ±5%, ±10%
testing voltage: between leading-out ends: 1.75UR, 10S no breakdown
between leading-out end and shell: 2000VAC, 10S no breakdown
insulation resistance: between leading-out ends: =3000MO.µF
between leading-out end and shell: 1000MO
loss tangent: tgd=0.002(50HZ)
Specifications: Can be supplied according to the customers' special need.
motor starting capacitor, motor starting capacitors
