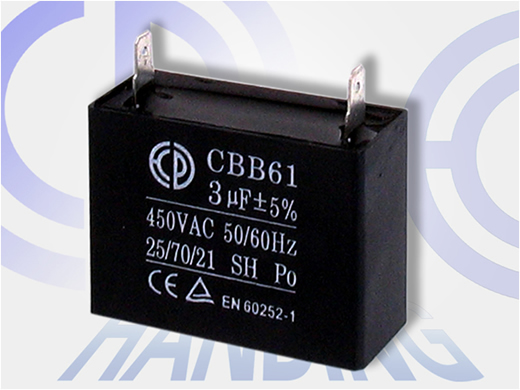

  CBB61-2 Capacitor

Features and use: All of its performance indexes reach the requirements of IEC252 criterion. With its good self-healing characteristic, long life-span and high proportionality, it is widely used as the start-up and running capacitor that is special for electric appliances such as electric fanners, ventilators and exhaust fanners.
motor capacitor, ac capacitor
Technical features: climate types: 40/70/21
capacity volume variance: ±5%, ±10%
testing voltage: between leading-out ends: 1.75UR, 10S no breakdown
between leading-out end and shell: 2000VAC, 10S no breakdown
insulation resistance: between leading-out ends: =3000MO.µF
between leading-out end and shell: 1000MO
loss tangent: tgd=0.002(50HZ)
Specifications: Can be supplied according to the customers' special need.
motor capacitor, ac capacitor

Specification requirement
Standard capacitanceµF 450VAC~500VAC 250VAC
L W H L W H
1~1.5 37 15 26
1.2~4 47 18 34 37 15 26
5~6 50 23 40 47 18 34
6~10 48 28 34 50 23 40
10~15 60 28 42 48 28 34
15~25 60 39 50 60 28 42
25~40       60 39 50
