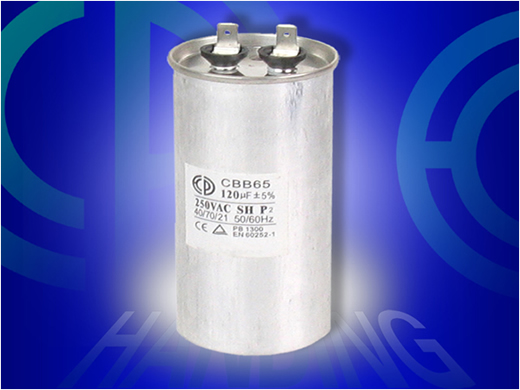

Features and use: The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, illuminating lamps, etc.
oil filled capacitor, oil filled capacitors
Technical features: climate types: 40/70/21
capacity volume variance: ±5%, ±10%
testing voltage: between leading-out ends: 1.75UR, 10S no breakdown
between leading-out end and shell: 2200VAC, 10S no breakdown
insulation resistance: between leading-out ends: =3000MO.µF
between leading-out end and shell: =1000MO
loss tangent: tgd=0.002(50HZ)
Specifications: Can be supplied according to the customers' special need.
