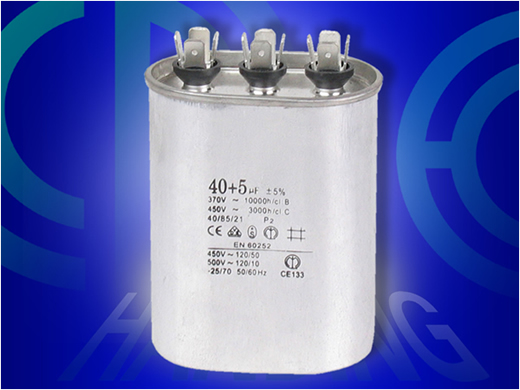

  CBB65B-2 Capacitor

Features and use: This product has a large area for cooling and a good pressure resistance capacity. Inside, it is equipped with explosion-proof equipment and discharging resistors. It is convincingly safe, is good at self-healing, and has a long lifespan. The tolerance of it is very small. Neither will it cause the overshooting of the short-circuit current, nor will the shortening of its lifespan. This product is specially made for the metallic halide lamps.
motor capacitor, ac capacitor
Technical features: climate types: 40/70/21
capacity volume variance: ±5%, ±10%
testing voltage: between leading-out ends: 1.75UR, 10S no breakdown
between leading-out end and shell: 2200VAC, 10S no breakdown
insulation resistance: between leading-out ends: =3000MO.µF
between leading-out end and shell: =1000MO
loss tangent: tgd=0.002(50HZ)
Specifications: Can be supplied according to the customers' special need.
motor capacitor, ac capacitor

Specification requirement
capacitance(µF) Voltage(VAC) 370(350V~) 450(400V~)
Size(mm) L×B×H L×B×H
5 52×32×40 52×32×60
6 52×32×60 52×32×60
7 52×32×60 52×32×60
7.5 52×32×60 52×32×60
8 52×32×60 52×32×60
10 52×32×60 52×32×60
11.5 52×32×60 52×32×60
12.5 52×32×60 52×32×75
15 52×32×60 52×32×75
17.5 52×32×75 52×32×85
20 52×32×75 52×32×85
25 52×32×85 52×32×100
30 52×32×85 70×45×85
35 52×32×100 70×45×100
40   70×45×100
45   70×45×100
50   70×45×125
