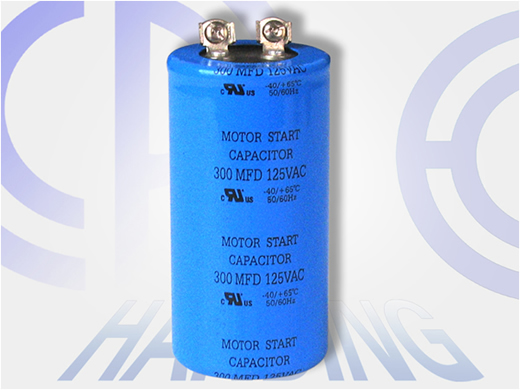

  CD60-8 Capacitor

uses high-purity electron aluminum foil as its polar plates, and is wrapped with the dielectric materials of capacitor tissue and aluminum oxide. It has non-solid electrolyte, metal shell, and double-tab and lead wire terminals. It can be used in the startup of single-phase Ac motors (50Hz or 60Hz) to gain greater angular force under lower stating current. It is characterized by its excellent electric property, stable and dependable quality.
motor capacitor, electrolytic capacitor
working temperature range: -10~+55℃
rated voltage: 110~330VAC
capacity volume variance: +30% 0
Umax: UR<160V Umax=1.25UR; UR>160> Umax=1.2UR
loss tangent: tgd< 0.15
between leading-out ends: between leading-out ends: 1.2UR, 2S no breakdown
between leading-out end and shell: between leading-out end and shell: 2000VAC, no breakdown
motor capacitor, electrolytic capacitor

Specification requirement
Standard capacitanceµF 125VAC 250VAC 300VAC
D H D H D H
50 34 80 34 80 34 80
75 34 80 34 80 34 80
100 34 80 42 80 42 80
150 34 80 45 88 45 88
200 34 80 50 100 50 100
250 34 80 50 100 50 100
300 42 80 50 100 50 100
350 42 80 50 100 50 100
400 42 80 950 100 60 100
500 50 100 60 100 60 100
600 50 100 60 120 60 120
800 60 100
1000 60 120

Specification requirement
Standard capacitance
(MFD)
110/115VAC 125VAC 165VAC 220VAC 250VAC 330VAC
21-25 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85
25-30 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85
30-36 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85
36-43 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72
43-52 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72
47-56 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72
53-64 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72
64-77 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72
72-86 36.50×69.85 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72
88-106 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72 36.50×85.72
108-130 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72 36.50×85.72
124-149 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72 36.50×85.72
130-156 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72
145-174 36.50×69.85 36.50×69.85 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72
161-193 36.50×69.85 36.50×69.85 36.50×85.72 46.02×85.72 46.02×85.72 46.02×111.12
189-227 36.50×69.85 36.50×85.72 36.50×85.72 46.02×85.72 46.02×85.72 46.02×111.12
216-259 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72 46.02×85.72 46.02×111.12
233-280 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72 46.02×85.72 46.02×111.12
243-292 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72 46.02×111.12 52×86
270-324 36.50×85.72 36.50×85.72 36.50×85.72 46.02×85.72 46.02×111.12 52×86
324-389 36.50×85.72 36.50×85.72 36.50×85.72 46.02×111.12 46.02×111.12 52×86
340-408 46.02×85.72 36.50×85.72 46.02×85.72 46.02×111.12 46.02×111.12
378-454 46.02×85.72 36.50×85.72 46.02×85.72 46.02×111.12 46.02×111.12
400-480 46.02×85.72 36.50×85.72 46.02×111.12 52×86 52×86
430-516 46.02×85.72 46.02×85.72 46.02×111.12 52×86 52×86
460-552 46.02×85.72 46.02×85.72 46.02×111.12 52×86 52×86
540-648 46.02×111.12 46.02×111.12
590-708 46.02×111.12 46.02×111.12
645-774 46.02×111.12 46.02×111.12
708-850 46.02×111.12 46.02×111.12
